Architecture

MAGPIE is layered so application code depends on stable abstractions while transport implementations remain thin and replaceable.

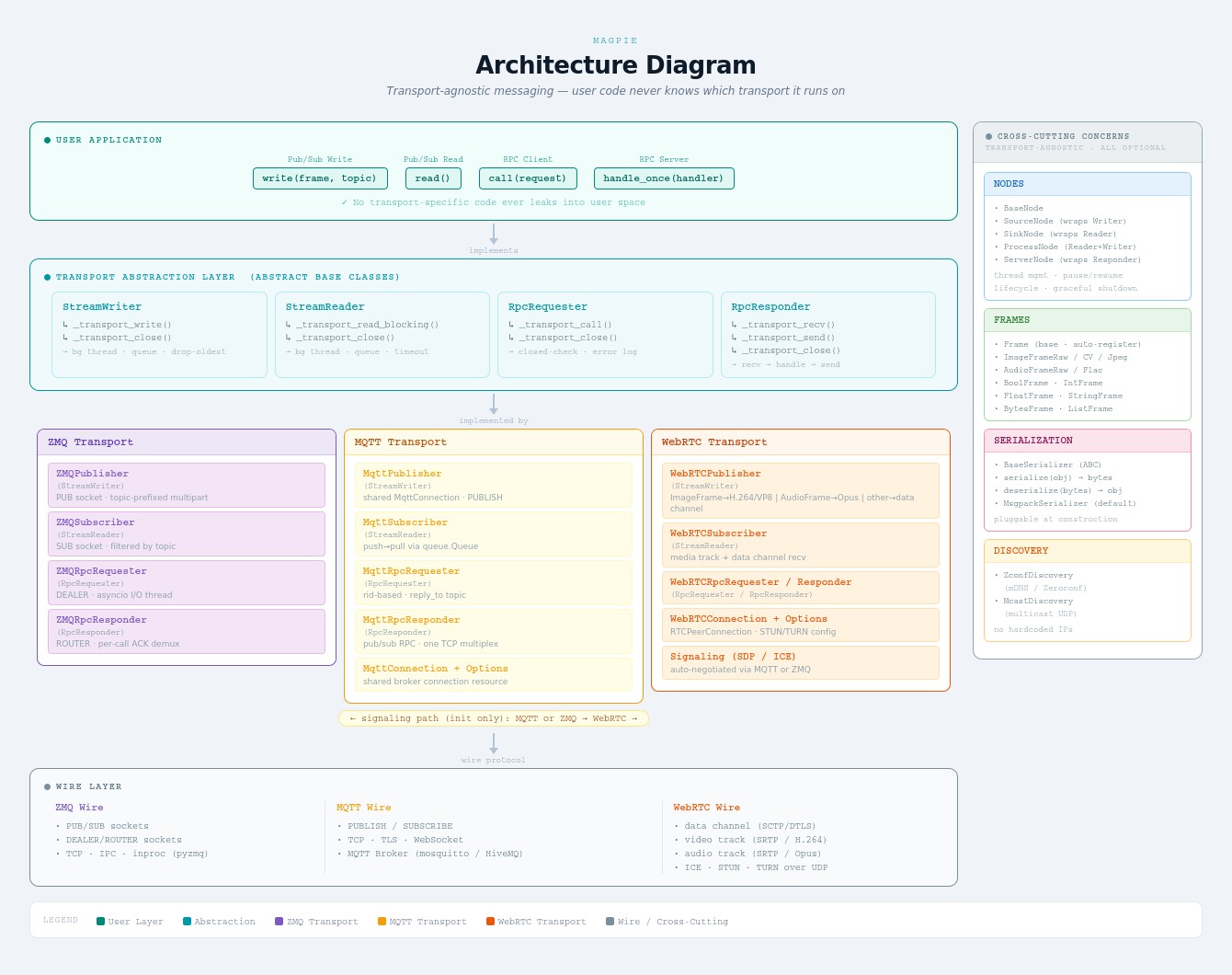

MAGPIE architecture showing user APIs, abstraction classes, transport implementations, wire protocols, frames, serialization, nodes, and discovery

Layers​

1. User application​

Application code uses four actions:

IntentAPI
Publish a stream itemwriter.write(frame, topic)
Receive a stream itemreader.read(...)
Call a remote servicerequester.call(request, ...)
Process one requestresponder.respond(handler, ...)

The application does not need to manage transport threads, packet envelopes, or response correlation.

2. Transport abstraction​

The abstract writer, reader, requester, and responder classes own shared behavior such as queues, lifecycle, serialization, timeouts, and error propagation. A transport implements only its I/O boundary.

3. Transport implementations​

  • ZeroMQ provides direct local or network communication with no broker.
  • MQTT provides brokered routing, authentication, TLS, retained state, and NAT-friendly outbound connections.
  • WebRTC provides peer-to-peer data and native audio/video tracks after a signaling handshake.

All three present the same stream and RPC concepts even though their wire behavior differs.

4. Frames and serialization​

MAGPIE serializes values with MessagePack by default. Typed frames add a stable envelope containing identifiers, timestamps, type information, and media metadata. Deserializers reconstruct the corresponding frame type on the receiving side.

5. Schema and MCP adapters​

JsonRpcSchema adds method dispatch and JSON Schema contracts without changing the transport. McpSchema builds the MCP lifecycle and tool operations on top. Client adapters let an MCP client use any MAGPIE RPC requester.

6. Nodes and tools​

Node helpers add lifecycle management around the primitives. CLI tools use the same public APIs as applications, which makes them useful probes for testing endpoints and topics.

Ownership rules​

Clear ownership prevents duplicated connections and unexpected shutdowns:

  • A component that creates a connection owns and closes it.
  • Writers, readers, requesters, and responders borrow a shared MQTT or WebRTC connection unless documented otherwise.
  • An MCP transport borrows the requester supplied to it; the caller closes the requester.
  • Closing one component should not implicitly close a shared connection used by other components.

Adding a transport​

A new transport implements the protected I/O methods while inheriting queueing, lifecycle, and the public API. See Extending MAGPIE for a minimal implementation pattern.
